Seamless splicing
Corner protection
High grey scale & High constrast
The indicator light reflects the working status

Seamless splicing
Corner protection
High grey scale & High constrast
The indicator light reflects the working status

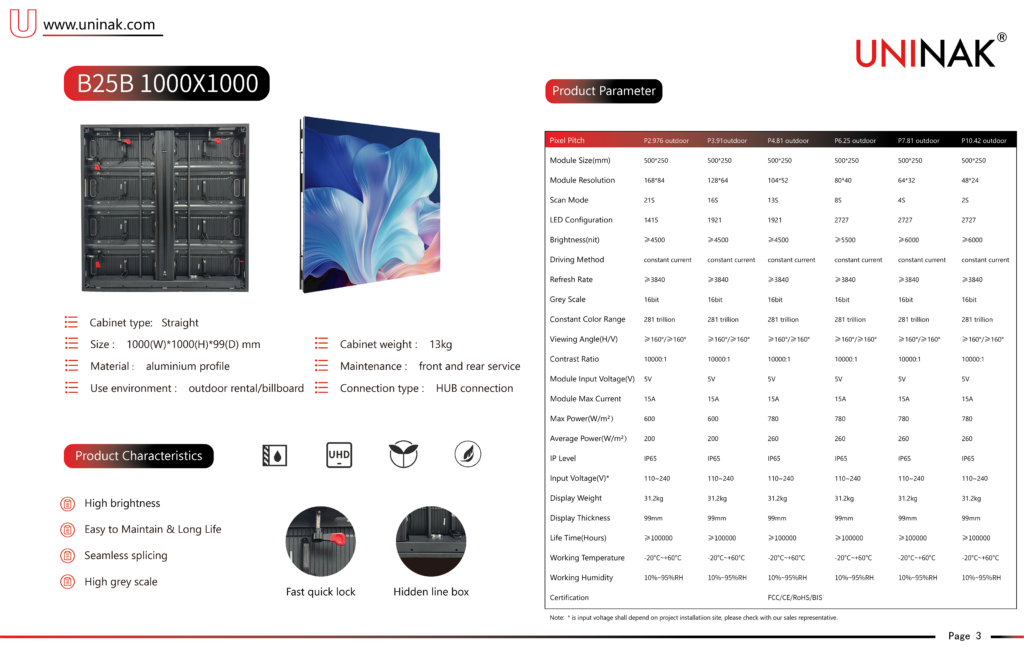

Pixel Pitch | P2.976 outdoor | P3.91outdoor | P4.81 outdoor | P6.24 outdoor | P7.81 outdoor | P10.42 outdoor |
Module Size(mm) | 500*250 | 500*250 | 500*250 | 500*250 | 500*250 | 500*250 |
Module Resolution | 168*84 | 128*64 | 104*52 | 80*40 | 64*32 | 48*24 |
Scan Mode | 21S | 16S | 13S | 5S | 4S | 2S |
LED Configuration | 1415 | 1921 | 1921 | 2727 | 2727 | 2727 |
Brightness(nit) | ≥4500 | ≥4500-6000 | ≥4500-6000 | ≥5500 | ≥6000 | ≥6000 |
Driving Method | constant current | constant current | constant current | constant current | constant current | constant current |
Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Viewing Angle(H/V) | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° |
Contrast Ratio | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 | 10000:1 |
Module Input Voltage(V) | 5V | 5V | 5V | 5V | 5V | 5V |
Module Max Current | 15A | 15A | 15A | 15A | 15A | 15A |
Max Power(W/㎡) | 600 | 600 | 780 | 780 | 780 | 780 |
Average Power(W/㎡) | 200 | 200 | 260 | 260 | 260 | 260 |
IP Level | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
Input Voltage(V) | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 |
Display Weight | 31.2kg | 31.2kg | 31.2kg | 31.2kg | 31.2kg | 31.2kg |
Display Thickness | 99mm | 99mm | 99mm | 99mm | 99mm | 99mm |
Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
Working Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
Certification | FCC/CE/RoHS/BIS |
