F24E

COB moduleSeamless splicingUltra-thin and lightweightQuick and convenient installation

  • Product Detail
  • Product Parameter

COB module
Seamless splicing
Ultra-thin and lightweight
Quick and convenient installation

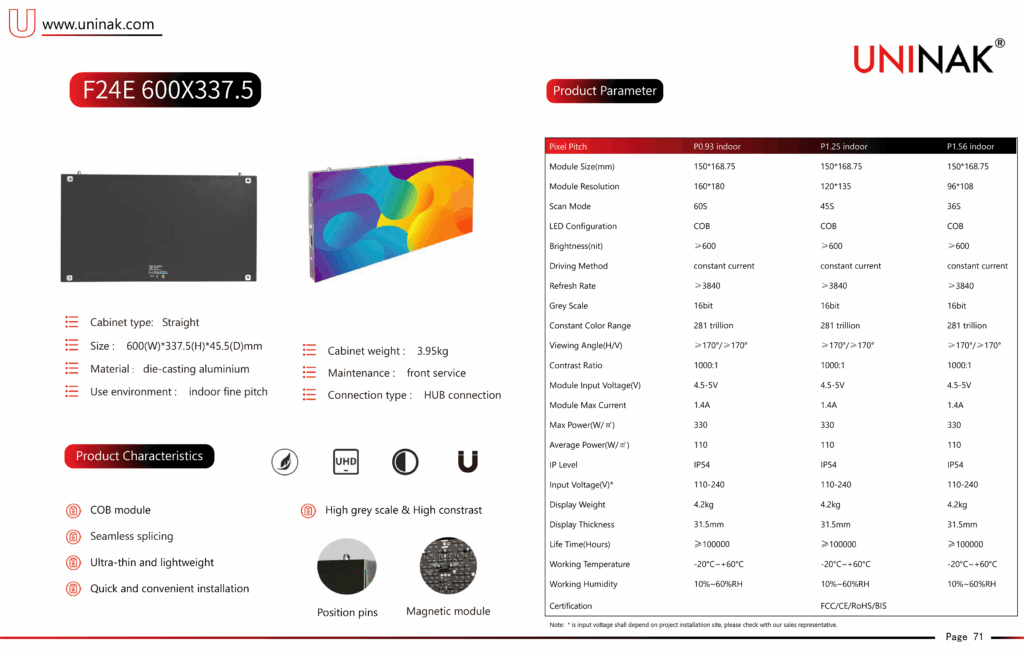

Pixel Pitch P0.93 indoor P1.25 indoor P1.56 indoor
Module Size(mm) 150*168.75 150*168.75 150*168.75
Module Resolution 160*180 120*135 96*108
Scan Mode 60S 45S 36S
LED Configuration COB COB COB
Brightness(nit) ≥600 ≥600 ≥600
Driving Method constant current constant current constant current
Refresh Rate ≥3840 ≥3840 ≥3840
Grey Scale 16bit 16bit 16bit
Constant Color Range 281 trillion 281 trillion 281 trillion
Viewing Angle(H/V) ≥170°/≥170° ≥170°/≥170° ≥170°/≥170°
Contrast Ratio 1000:01:00 1000:01:00 1000:01:00
Module Input Voltage(V) 4.5-5V 4.5-5V 4.5-5V
Module Max Current 1.4A 1.4A 1.4A
Max Power(W/㎡) 330 330 330
Average Power(W/㎡) 110 110 110
IP Level IP54 IP54 IP54
Input Voltage(V) 110-220 110-220 110-220
Display Weight 4.2kg 4.2kg 4.2kg
Display Thickness 31.5mm 31.5mm 31.5mm
Life Time(Hours) ≥100000 ≥100000 ≥100000
Working Temperature -20°C~+60°C -20°C~+60°C -20°C~+60°C
Working Humidity 10%~60%RH 10%~60%RH 10%~60%RH
Certification FCC/CE/RoHS/BIS
