High brightness
HUB connection
90 degrees available
Mix and match 1000×500/1000×250/750×250/500x250mm

High brightness
HUB connection
90 degrees available
Mix and match 1000×500/1000×250/750×250/500x250mm

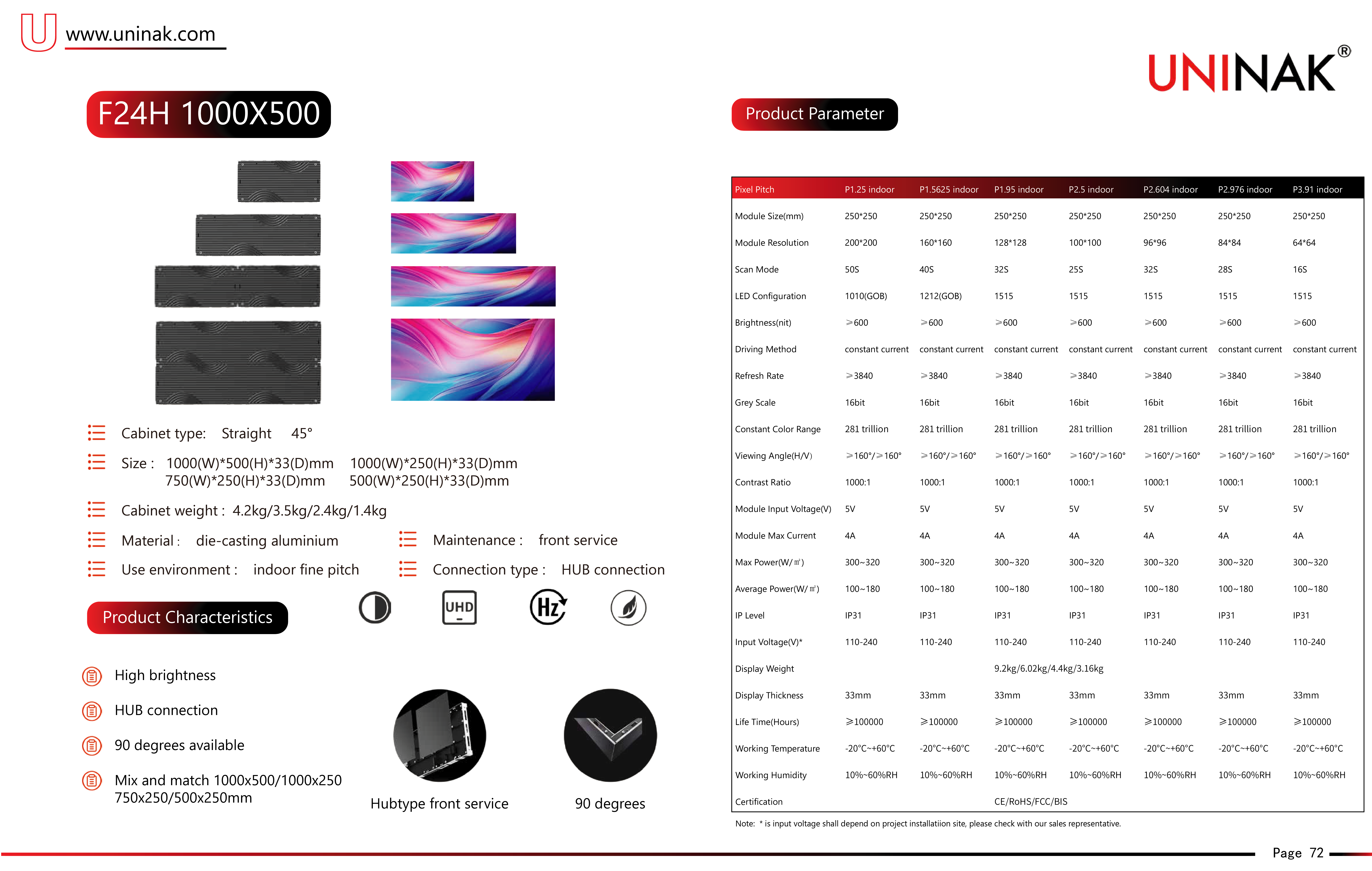

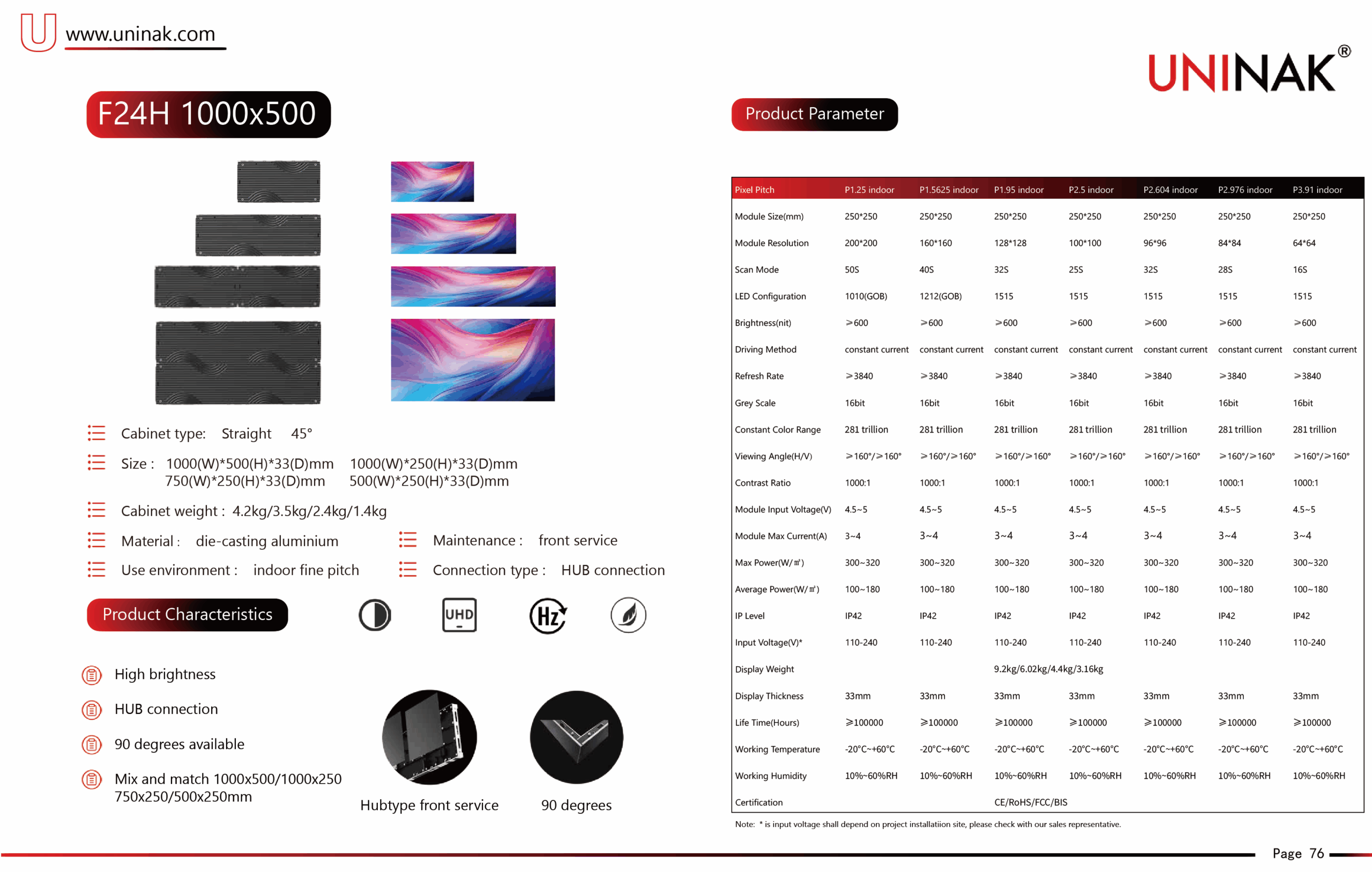

Pixel Pitch | P1.25 indoor | P1.5625 indoor | P1.95 indoor | P2.5 indoor | P2.604 indoor | P2.976 indoor | P3.91 indoor |
Module Size(mm) | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 | 250*250 |
Module Resolution | 200*200 | 160*160 | 128*128 | 100*100 | 96*96 | 84*84 | 64*64 |
Scan Mode | 50S | 40S | 32S | 25S | 32S | 28S | 16S |
LED Configuration | 1010(GOB) | 1212(GOB) | 1515 | 1515 | 1515 | 1515 | 1515 |
Brightness(nit) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
Driving Method | constant current | constant current | constant current | constant current | constant current | constant current | constant current |
Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Viewing Angle(H/V) | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° | ≥160°/≥160° |
Contrast Ratio | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 |
Module Input Voltage(V) | 5V | 5V | 5V | 5V | 5V | 5V | 5V |
Module Max Current | 4A | 4A | 4A | 4A | 4A | 4A | 4A |
Max Power(W/㎡) | 300~320 | 300~320 | 300~320 | 300~320 | 300~320 | 300~320 | 300~320 |
Average Power(W/㎡) | 100~180 | 100~180 | 100~180 | 100~180 | 100~180 | 100~180 | 100~180 |
IP Level | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
Input Voltage(V) | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 |
Display Weight | 9.2kg/6.02kg/4.4kg/3.16kg | ||||||
Display Thickness | 33mm | 33mm | 33mm | 33mm | 33mm | 33mm | 33mm |
Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
Working Humidity | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH |
Certification | FCC/CE/RoHS/BIS |
