Free splicing
Magnetic installation
Product Characteristics:
Ultra-thin and lightweight

Free splicing
Magnetic installation
Product Characteristics:
Ultra-thin and lightweight

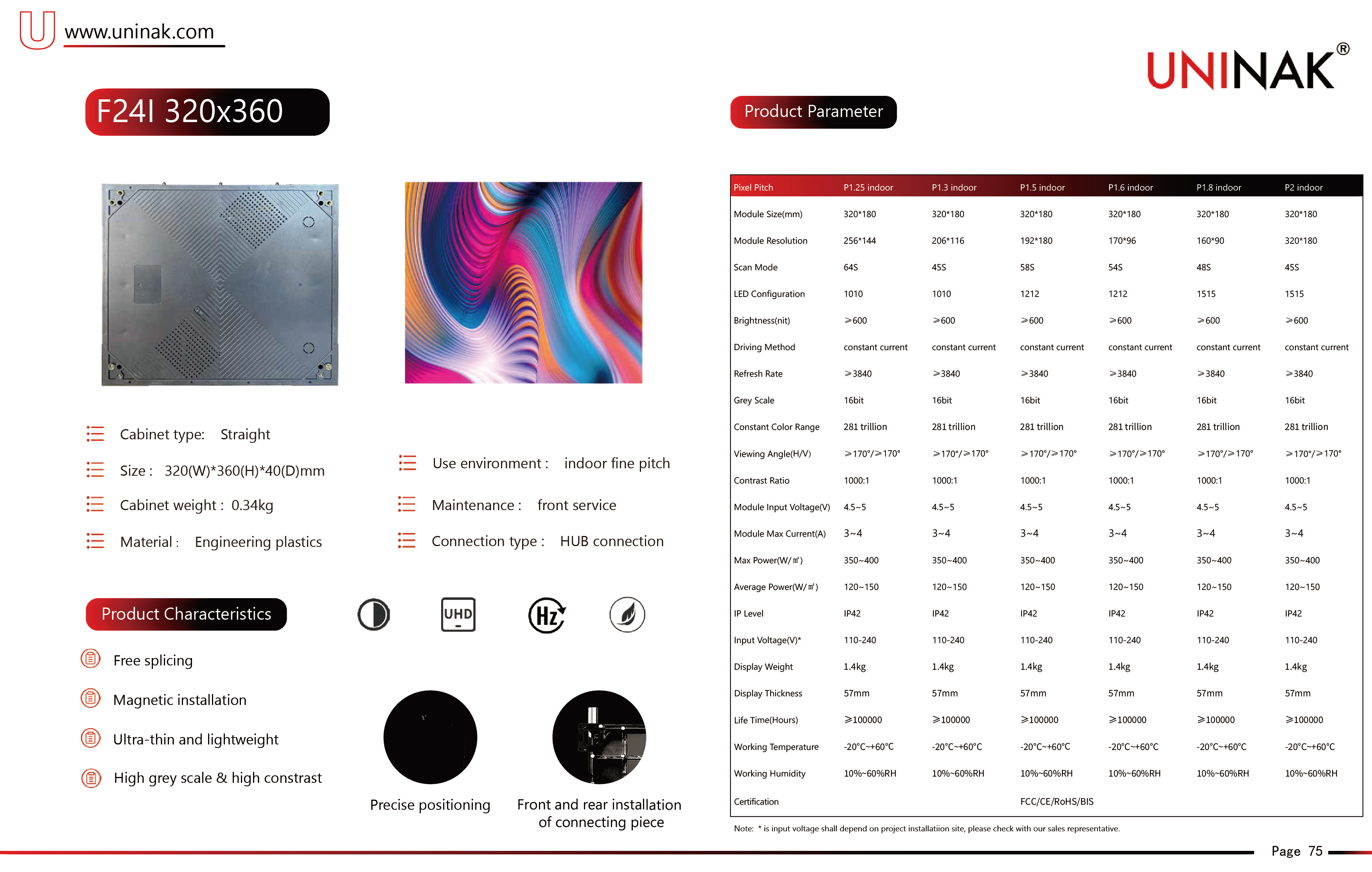

Pixel Pitch | P1.25 indoor | P1.3 indoor | P1.3 indoor | P1.6 indoor | P1.8 indoor | P2 indoor |
Module Size(mm) | 320*180 | 320*180 | 320*180 | 320*180 | 320*180 | 320*180 |
Module Resolution | 256*144 | 206*116 | 206*116 | 170*96 | 160*90 | 320*180 |
Scan Mode | 64S | 45S | 45S | 54S | 48S | 45S |
LED Configuration | 1010 | 1010 | 1010 | 1212 | 1515 | 1515 |
Brightness(nit) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
Driving Method | constant current | constant current | constant current | constant current | constant current | constant current |
Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit | 16bit |
Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
Viewing Angle(H/V) | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° | ≥170°/≥170° |
Contrast Ratio | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 |
Module Input Voltage(V) | 4.5~5V | 4.5~5V | 4.5~5V | 4.5~5V | 4.5~5V | 4.5~5V |
Module Max Current | 4A | 4A | 4A | 4A | 4A | 4A |
Max Power(W/㎡) | 380 | 380 | 380 | 380 | 380 | 380 |
Average Power(W/㎡) | 127 | 127 | 127 | 127 | 127 | 127 |
IP Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
Input Voltage(V) | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 |
Display Weight | 1.4kg | 1.4kg | 1.4kg | 1.4kg | 1.4kg | 1.4kg |
Display Thickness | 57mm | 57mm | 57mm | 57mm | 57mm | 57mm |
Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
Working Humidity | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH | 10%~60%RH |
Certification | FCC/CE/RoHS/BIS |
