E23H/

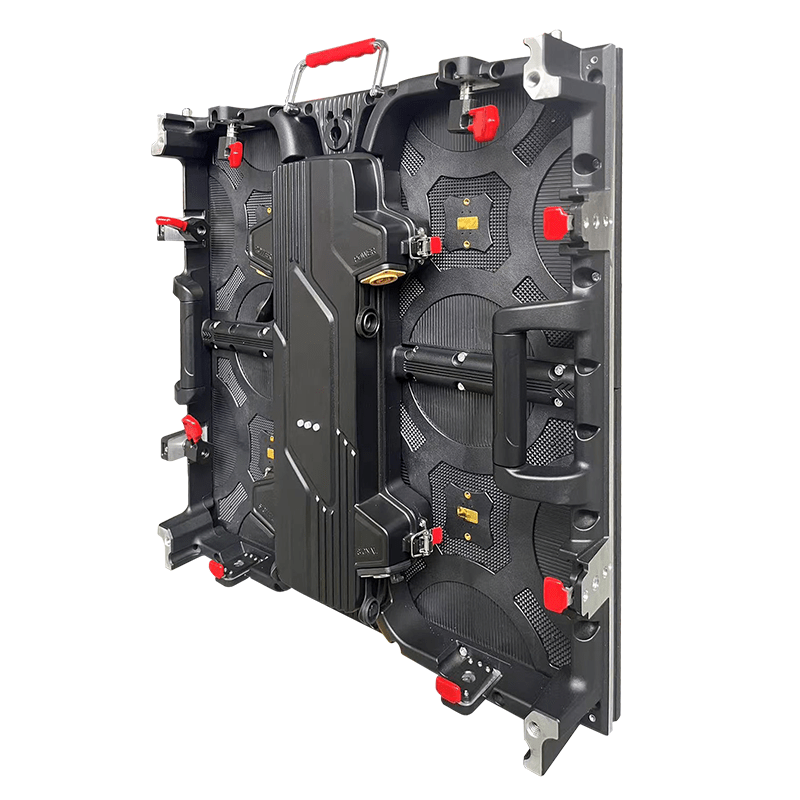

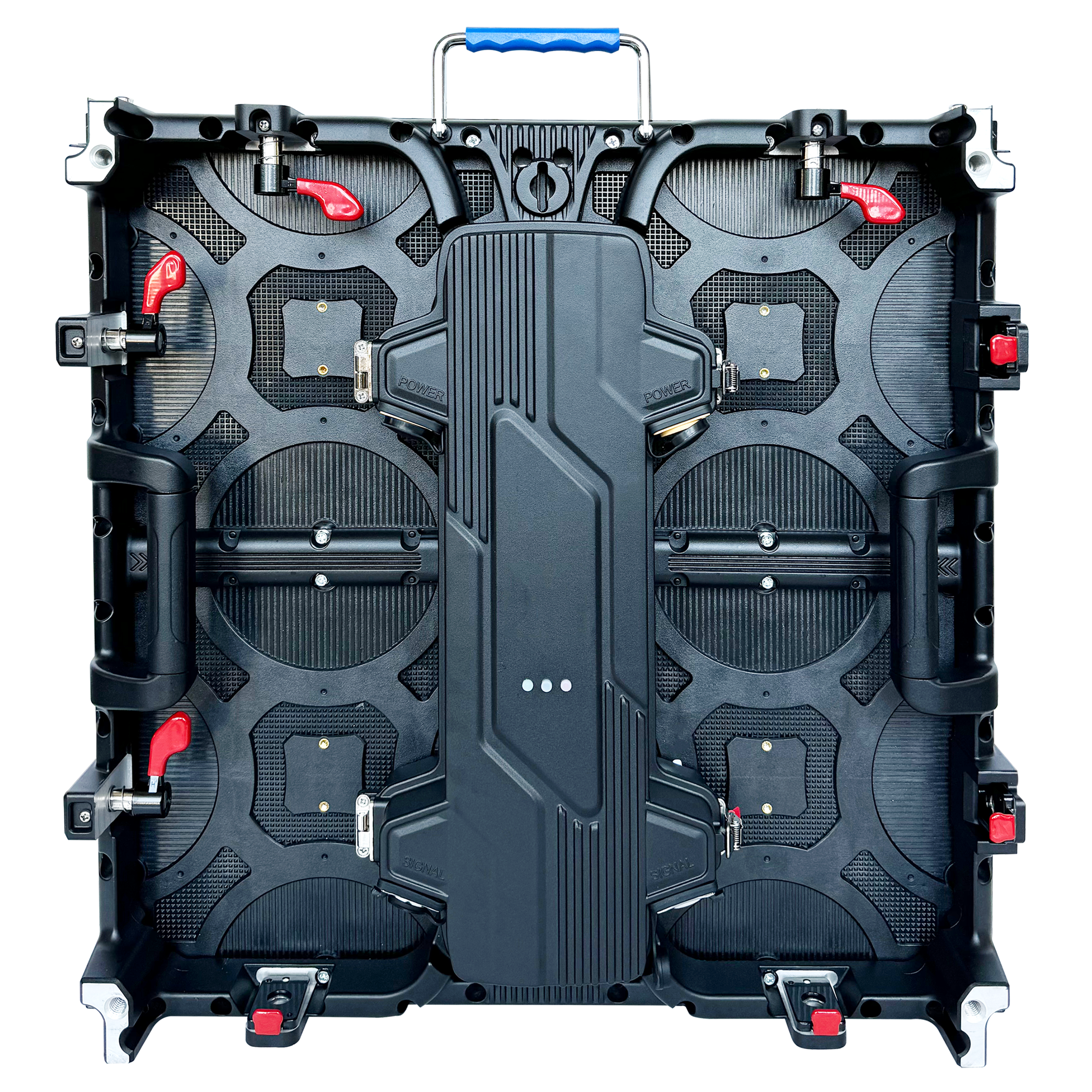

LED Video For Display Screen Rental For Events-E23H

Cabinet Size:500*500mm/500*1000mm
Cabinet Weight:(Outdoor)6.2kg/(Indoor)6.7kg
Brightness:4000-4500cd/m²(outdoor)&>600cd/m²(indoor)
Refesh Rate:3840
Gray Scale:14-16 bit
Viewing Angle:170/140
Ingress Protection:(Outdoor) IP65 (Indoor)IP42
Power Consumption:(Outdoor) 650/190 & (Indoor) 500/120
Input Voltage(AC):100-240
Working Temperature:-20-60°C
Humidity:10%-95%RH

  • Product Detail
  • Parameter
  • FAQs
  • Packing & Delivery

High precision
Corner protection
Front and rear access
Stainless steel fast lock
Enhanced waterproofing
Die-casting aluminum handle
500mm*500mm 500mm*1000mm can be mixed for use

E22P  P1.95 Indoor  P2.604 Indoor  P2.976 Indoor P3.91 Indoor P2.976 Outdoor P3.91 Outdoor P4.81 Outdoor
Unit Dimension (mm) 500*500*84 500*500*84 500*500*84 500*500*84 500*500*84 500*500*84 500*500*84
Unit Resolution  (W*H) 256*256 192*192 172*172 128*128 172*172 128*128 104*104
Lamp type 1515 1515 1515 2020 1415 1921 1921
Brightness max (CD/m2) >600 >600 >600 >600 4000-4500 4000-4500 4000-4500
Refresh rate (Hz) 1920/3840 1920/3840 1920/3840 1920/3840 1920/3840 1920/3840 1920/3840
Scan Information 1/32 1/32 1/2/ 1/16 1/21 1/16 1/13
Gray Scale (bit) 14-16 14-16 14-16 14-16 14-16 14-16 14-16
Viewing Angle (degree) 170/140 170/140 170/140 170/140 170/140 170/140 140/120
Ingress Protection IP42 IP42 IP42 IP42 IP 65 IP 65 IP 65
Power consumption(watt/m2) 500/120 500/120 500/120 500/120 650/190 650/190 650/190
Weight (Kg/cabinet) 6.2 6.2 6.2 6.2 6.7 6.7 6.7
Input voltage  (v) 100-240 100-240 100-240 100-240 100-240 100-240 100-240

7

Q: What does your company do? A: Our company make industrial professional led display products. We are in the field for more than 5 years and are professional for the led research&solutions. We focus on Led Rental – Stage Displays and Fixed Installation solutions where you can install your display on many different kind of places. Q: Where can we buy your products? A: Please contact us by Inquiry@uninak.com. We sell the product world wide, the product will be shipped from China. Let us know from what country you are from and we will give you also a free consult for your led display solution. Q: What kind of led display will suit the best for my solution? A:We are a professional manufacturer of Rental led screens and Fixed installation displays. If you have a certain project please contact us. What we will need from you to give you the perfect solution: 1. How will you use the led display? 2. Will you move the display or will it always be on a fixed location? 3. Is the led display used for indoor or outdoor? 4. Will the sun shines on that location? So do you need more brightness on the led screen? 5. What is the distance from the public and the led screen? 6. Is there space behind the led display for a person to do maintenance? 7. If not you probably will need a front service screen solution. 8. Any specific resolution you want to the screens?
