B23B/

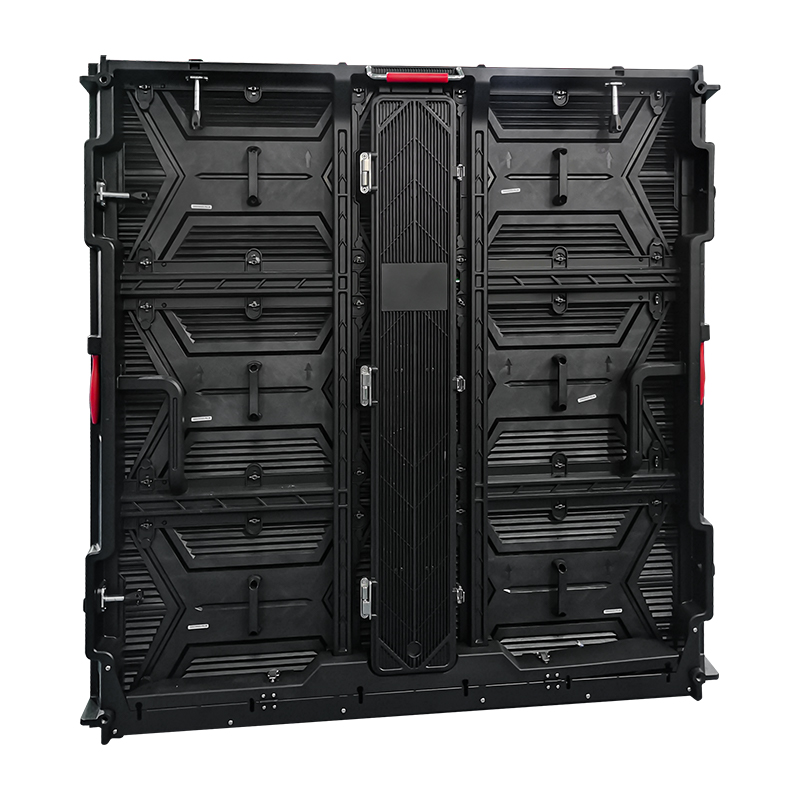

Outdoor advertising LED full color display screen-B23B

cabinet size:960*960mm

cabient weight:23.2kg

Brightness:     ≥5000

refresh rate:       1920/3840

Viewing Angle :140/120

grayscale:             16bit

Angle :140/120

Ingress Protection:Outdoor

Power consumption:750/250

Input voltage :100-240V

Working temperature:-20-60℃

Humidity:10%-95%RH

  • Product Detail
  • FAQs
  • Parameter
  • Packing & Delivery

High precision & Flatness
Ultra-thin and lightweight
Front and rear maintenance
IP65 waterproof protection level
High mask eyebrow design, good view angle
Hub board design, fast control box maintenance

Q: What does your company do? A: Our company make industrial professional led display products. We are in the field for more than 5 years and are professional for the led research&solutions. We focus on Led Rental – Stage Displays and Fixed Installation solutions where you can install your display on many different kind of places. Q: Where can we buy your products? A: Please contact us by Inquiry@uninak.com. We sell the product world wide, the product will be shipped from China. Let us know from what country you are from and we will give you also a free consult for your led display solution. Q: What kind of led display will suit the best for my solution? A:We are a professional manufacturer of Rental led screens and Fixed installation displays. If you have a certain project please contact us. What we will need from you to give you the perfect solution: 1. How will you use the led display? 2. Will you move the display or will it always be on a fixed location? 3. Is the led display used for indoor or outdoor? 4. Will the sun shines on that location? So do you need more brightness on the led screen? 5. What is the distance from the public and the led screen? 6. Is there space behind the led display for a person to do maintenance? 7. If not you probably will need a front service screen solution. 8. Any specific resolution you want to the screens?

B23B P4 Outdoor P5 Outdoor P6.67 Outdoor P8 Outdoor P10 Outdoor
Unit Dimension(W*H) (mm) (Depth:105mm) 960*960 960*960 960*960 960*960 960*960
Unit Resolution  (W*H) 240*240 192*192 144*144 120*120 96*96
Lamp type 1921 1921 2727 3535 3535
Brightness(CD/m2) ≥5000 ≥5000 ≥5000 ≥5500 ≥5500
Refresh rate (Hz) 1920/3840 1920/3840 1920/3840 1920/3840 1920/3840
Scan Information 1/10 1/8 1/6 1/5 1/2
Viewing Angle (Horiz/vert.)(degree) 140/120 140/120 140/120 140/120 140/120
Ingress Protection IP65 IP65 IP65 IP65 IP65
Power consumption(max/Avg)(watt/m2) 750/250 750/250 750/250 750/250 750/250
Weight (Kg/unit) 23.2 23.2 23.2 23.2 23.2
Input voltage (AC) (v) 100-240 100-240 100-240 100-240 100-240
