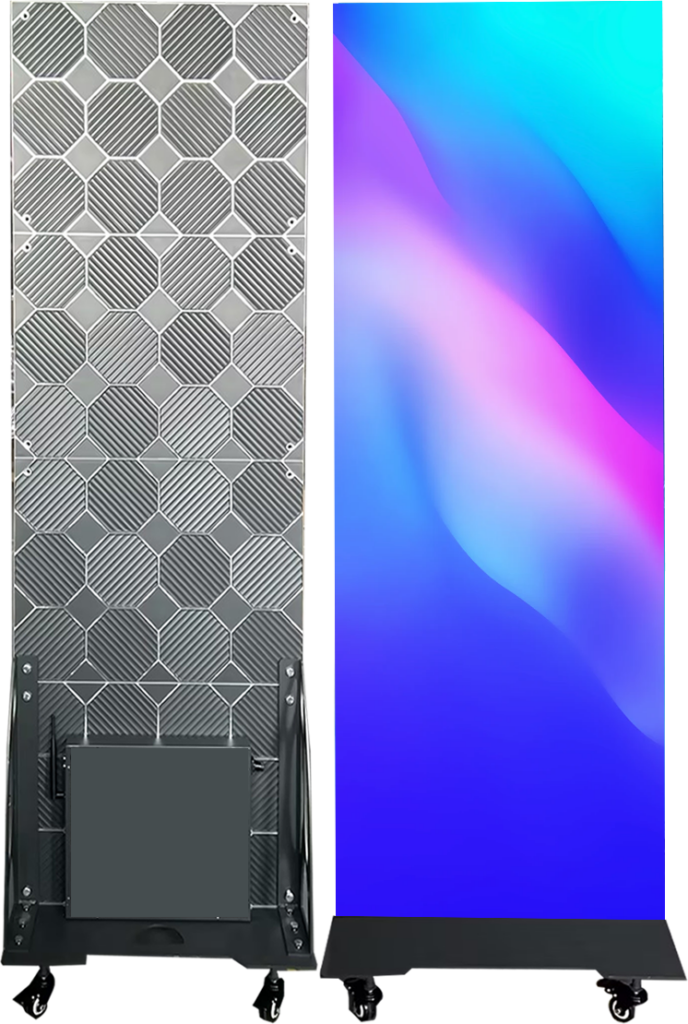

Poster/

P24A

cabinet size:640mm*1290mm*45mm cabient weight:30Kg Brightness:≥600 refresh rate: ≥3840 Viewing Angle :140/140 grayscale:16bit

 Ingress Protection:Indoor Power consumption:140/450 Input voltage :110~220 Working temperature:-20-60℃ Humidity:10%-95%RH

  • Product Detail
  • FAQs
  • Parameter
  • Packing & Delivery

Base with wheels
Multi-screen splicing
GOB module available
Smart cloud management
Support double-sides display

Q: What does your company do? A: Our company make industrial professional led display products. We are in the field for more than 5 years and are professional for the led research&solutions. We focus on Led Rental – Stage Displays and Fixed Installation solutions where you can install your display on many different kind of places. Q: Where can we buy your products? A: Please contact us by Inquiry@uninak.com. We sell the product world wide, the product will be shipped from China. Let us know from what country you are from and we will give you also a free consult for your led display solution. Q: What kind of led display will suit the best for my solution? A:We are a professional manufacturer of Rental led screens and Fixed installation displays. If you have a certain project please contact us. What we will need from you to give you the perfect solution: 1. How will you use the led display? 2. Will you move the display or will it always be on a fixed location? 3. Is the led display used for indoor or outdoor? 4. Will the sun shines on that location? So do you need more brightness on the led screen? 5. What is the distance from the public and the led screen? 6. Is there space behind the led display for a person to do maintenance? 7. If not you probably will need a front service screen solution. 8. Any specific resolution you want to the screens?

Pixel Pitch P1.25 indoor P1.538 indoor P1.86 indoor P2 indoor P2.5 indoor
Module Size(mm) 320*160 320*160 320*160 320*160 320*160
Module Resolution 256*128 208*104 172*86 160*80 128*64
Scan Mode 64S 52S 43S 40S 32S
LED Configuration 1010 1010 1515 1515 1515/2020
Brightness(nit) ≥600 ≥600 ≥600 ≥600 ≥600
Driving Method constant curre220nt constant current constant current constant current constant current
Refresh Rate ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale 16bit 16bit 16bit 16bit 16bit
Constant Color Range 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion
Viewing Angle(H/V) ≥140°/≥140° ≥140°/≥140° ≥140°/≥140° ≥140°/≥140° ≥140°/≥140°
Contrast Ratio 1000:1 1000:1 1000:1 1000:1 1000:1
Module Input Voltage(V) 5V 5V 5V 5V 5V
Module Max Current 3.5A 3.5A 3.5A 3.5A 3.5A
Max Power(W/PCS 450 450 450 450 450
Average Power(W/PCS) 140 140 140 140 140
IP Level IP42 IP42 IP42 IP42 IP42
Input Voltage(V) 110~220 110~220 110~220 110~220 110~
