Uninak
Multi-screen splicing
GOB module available
Smart cloud management
Support double-sides display
- Product Detail

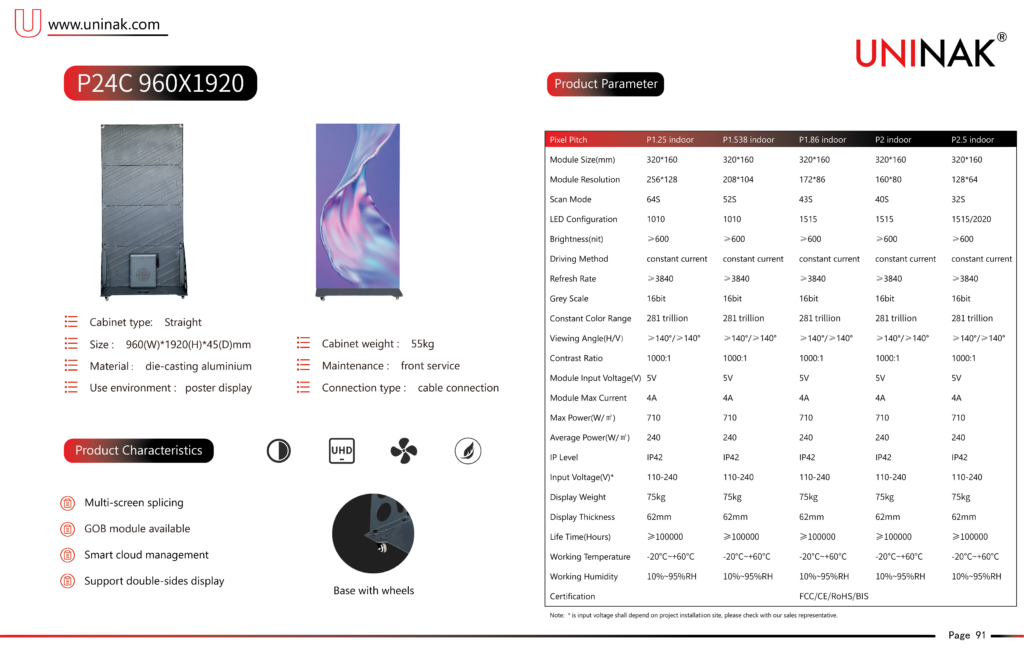

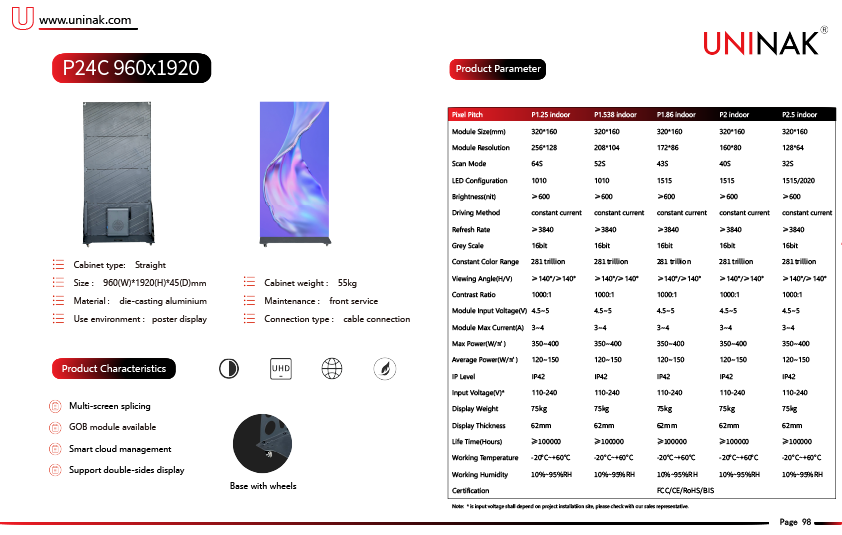

- Product Parameter
| Pixel Pitch | P1.25 indoor | P1.538 indoor | P1.86 indoor | P2 indoor | P2.5 indoor |
| Module Size(mm) | 320*160 | 320*160 | 320*160 | 320*160 | 320*160 |
| Module Resolution | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 |
| Scan Mode | 64S | 52S | 43S | 40S | 32S |
| LED Configuration | 1010 | 1010 | 1515 | 1515 | 1515/2020 |
| Brightness(nit) | ≥600 | ≥600 | ≥600 | ≥600 | ≥600 |
| Driving Method | constant current | constant current | constant current | constant current | constant current |
| Refresh Rate | ≥3840 | ≥3840 | ≥3840 | ≥3840 | ≥3840 |
| Grey Scale | 16bit | 16bit | 16bit | 16bit | 16bit |
| Constant Color Range | 281 trillion | 281 trillion | 281 trillion | 281 trillion | 281 trillion |
| Viewing Angle(H/V) | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° | ≥140°/≥140° |
| Contrast Ratio | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 | 1000:01:00 |
| Module Input Voltage(V) | 5V | 5V | 5V | 5V | 5V |
| Module Max Current | 4A | 4A | 4A | 4A | 4A |
| Max Power(W/㎡) | 710 | 710 | 710 | 710 | 710 |
| Average Power(W/㎡) | 240 | 240 | 240 | 240 | 240 |
| IP Level | IP42 | IP42 | IP42 | IP42 | IP42 |
| Input Voltage(V) | 110-220 | 110-220 | 110-220 | 110-220 | 110-220 |
| Display Weight | 75kg | 75kg | 75kg | 75kg | 75kg |
| Display Thickness | 62mm | 62mm | 62mm | 62mm | 62mm |
| Life Time(Hours) | ≥100000 | ≥100000 | ≥100000 | ≥100000 | ≥100000 |
| Working Temperature | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C | -20°C~+60°C |
| Working Humidity | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH | 10%~95%RH |
| Certification | FCC/CE/RoHS/BIS | ||||
