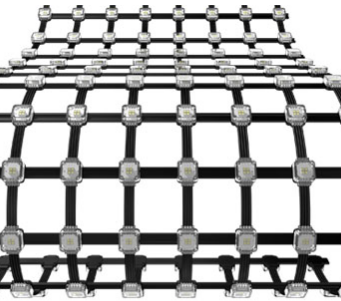

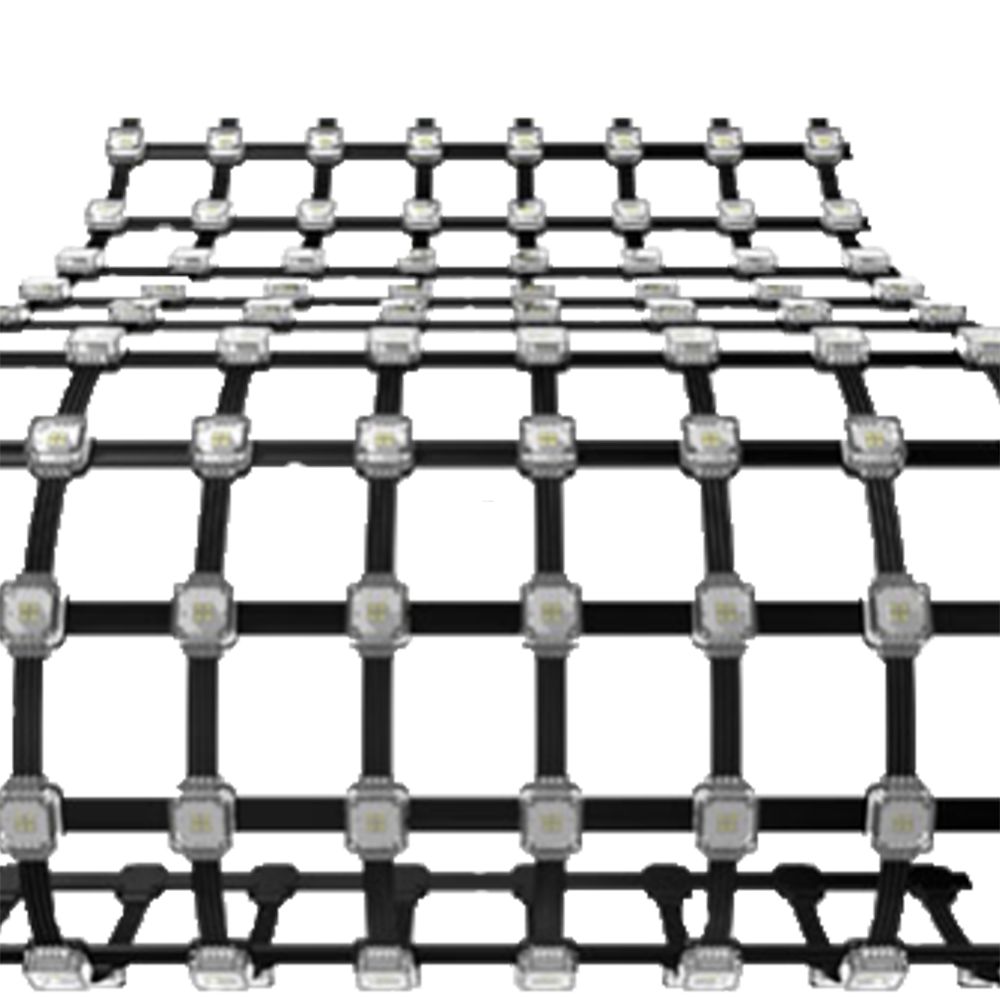

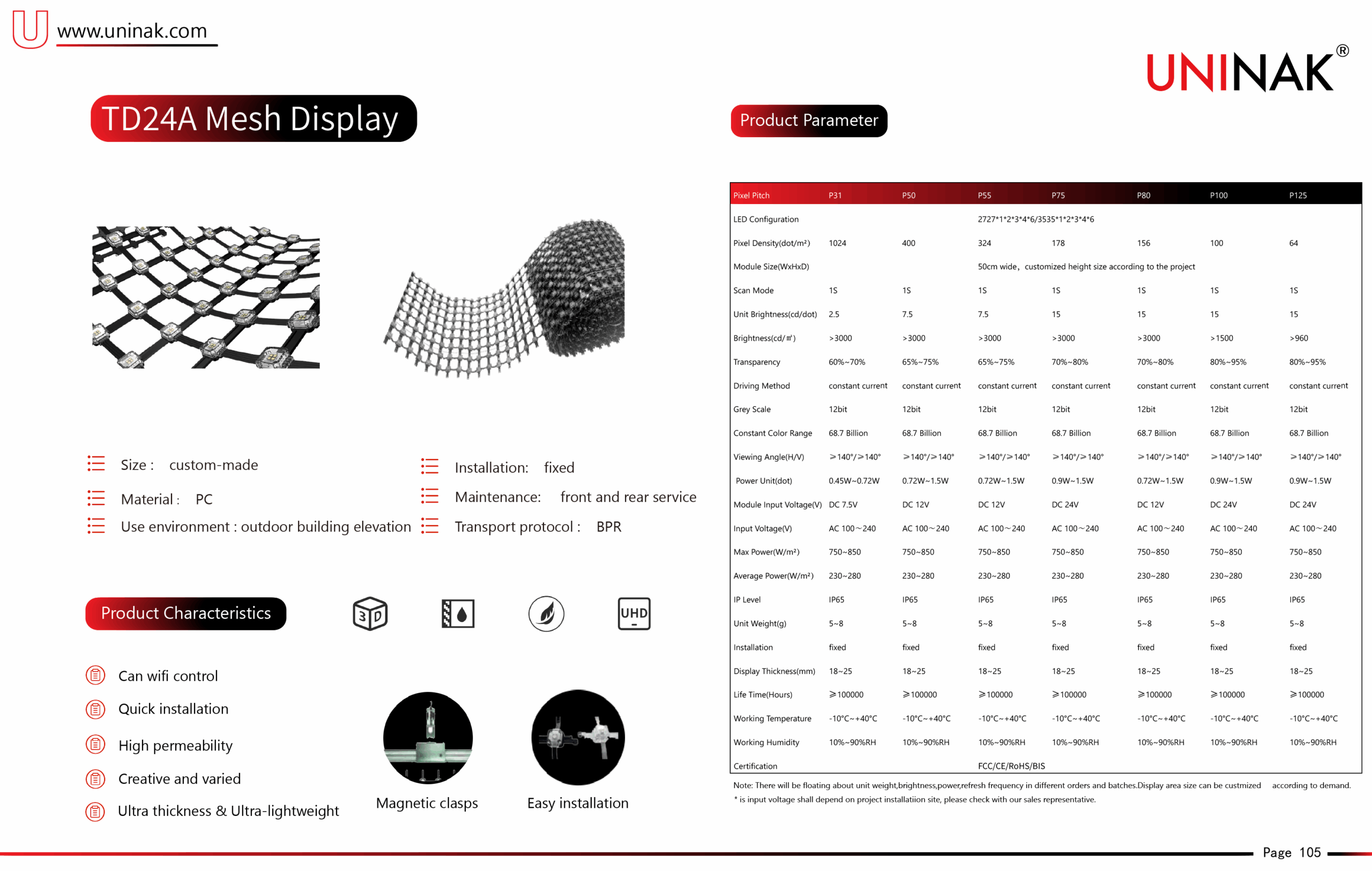

TD24A

Can wifi controlQuick installationHigh permeabilityCreative and varied

  • Product Detail
  • Product Parameter

Can wifi control
Quick installation
High permeability
Creative and varied

Pixel Pitch P25 P50 P75 P100 P125 P200
Module Size(WxHxD) 400*5000*24mm 800*5000*24mm 600*7500*24mm 800*10000*24mm 500*25000*24mm 800*20000*24mm
Module Pixel(W*L) 16*200 128*64 104*52 96*48 80*40 64*32
Pixel Density(dot/m²) 1600 400 178 100 64 25
Scan Mode 1S 1S 1S 1S 1S 1S
LED Configuration 2727*1*2*3*4*6/3535*1*2*3*4*6
Brightness(cd/㎡) ≥3000 ≥3000 ≥3000 ≥3000 ≥3000 ≥3000
Unit Brightness(cd/dot) 2.5 7.5 15 15 15 15
Transparency 60%~70% 65%~75% 70%~80% 80%~95% 80%~95% 80%~95%
Driving Method constant current constant current constant current constant current constant current constant current
Grey Scale 12bit 12bit 12bit 12bit 12bit 12bit
Constant Color Range 68.7 Billion 68.7 Billion 68.7 Billion 68.7 Billion 68.7 Billion 68.7 Billion
Viewing Angle(H/V) ≥140°/≥140° ≥140°/≥140° ≥140°/≥140° ≥140°/≥140° ≥140°/≥140° ≥140°/≥140°
 Power Unit(dot) 0.45W~0.72W 0.72W~1.5W 0.9W~1.5W 0.9W~1.5W 0.9W~1.5W 0.9W~1.5W
Module Input Voltage(V) DC 7.5V DC 12V DC 24V DC 24V DC 24V DC 24V
Input Voltage(V) AC 100~240 AC 100~240 AC 100~240 AC 100~240 AC 100~240 AC 100~240
Max Power(W/㎡) 750~850 750~850 750~850 750~850 750~850 750~850
Average Power(W/㎡) 230~280 230~280 230~280 230~280 230~280 230~280
IP Level IP66 IP66 IP66 IP66 IP66 IP66
Unit Weight(g) 5~8 5~8 5~8 5~8 5~8 5~8
Installation fixed fixed fixed fixed fixed fixed
Display Thickness 24mm 24mm 24mm 24mm 24mm 24mm
Life Time(Hours) ≥100000 ≥100000 ≥100000 ≥100000 ≥100000 ≥100000
Working Temperature -10°C~+40°C -10°C~+40°C -10°C~+40°C -10°C~+40°C -10°C~+40°C -10°C~+40°C
Working Humidity 10%~90%RH 10%~90%RH 10%~90%RH 10%~90%RH 10%~90%RH 10%~90%RH
Certification FCC/CE/RoHS/BIS
