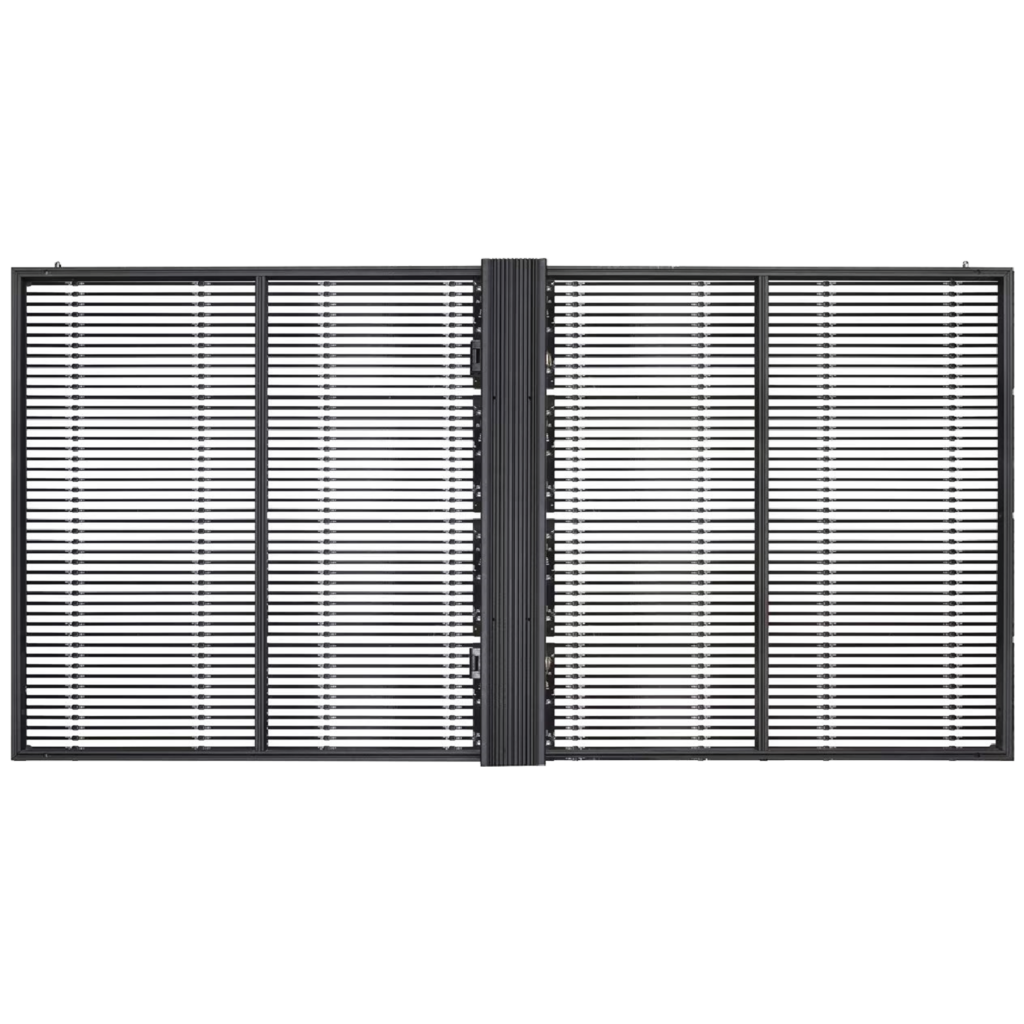

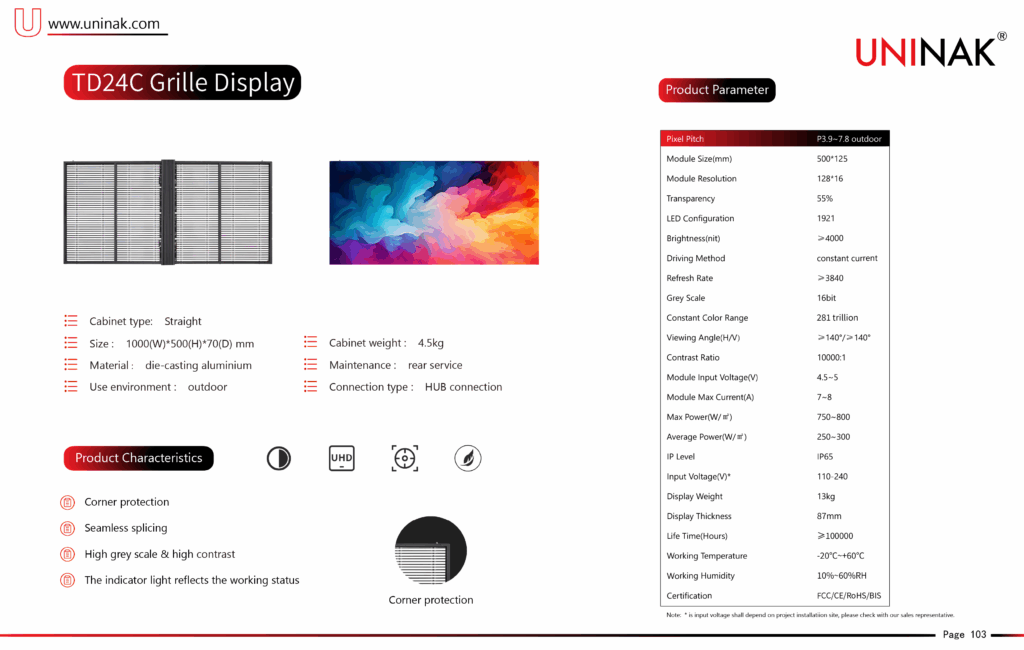

TD24C

Corner protectionSeamless splicingHigh grey scale & High contrastThe indicator light reflects the working status

  • Product Detail
  • Product Parameter

Corner protection
Seamless splicing
High grey scale & High contrast
The indicator light reflects the working status

Pixel Pitch outdoor P3.9~7.8
Module Size(mm) 500*125
Module Resolution 128*16
Transparency 55%
LED Configuration 1921
Brightness(nit) ≥4000
Driving Method constant current
Refresh Rate ≥3840
Grey Scale 16bit
Constant Color Range 281 trillion
Viewing Angle(H/V) ≥140°/≥140°
Contrast Ratio 10000:1
Module Input Voltage(V) 5V
Module Max Current 4.5A
Max Power(W/㎡) 780
Average Power(W/㎡) 260
IP Level IP65
Input Voltage(V) 110-220
Display Weight 13kg
Display Thickness 87mm
Life Time(Hours) ≥100000
Working Temperature -20°C~+60°C
Working Humidity 10%~60%RH
Certification FCC/CE/RoHS/BIS
