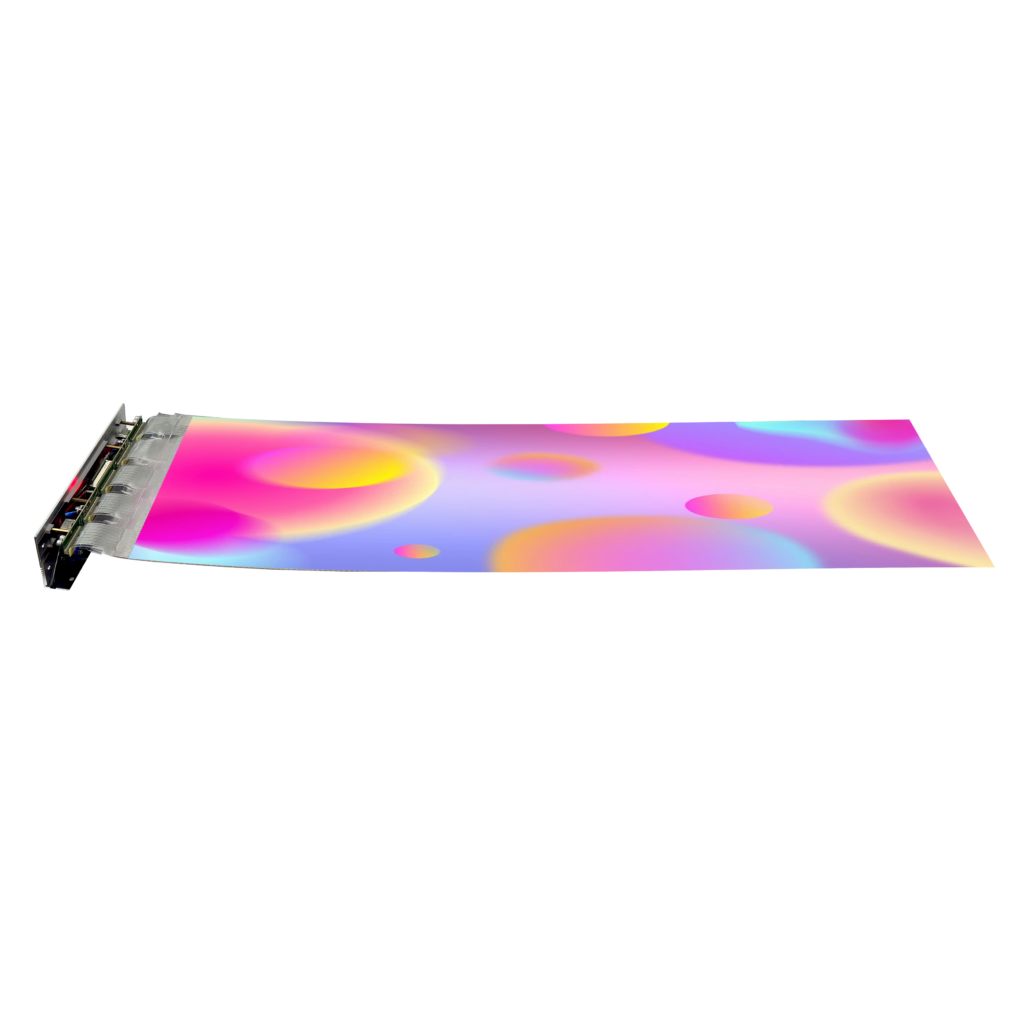

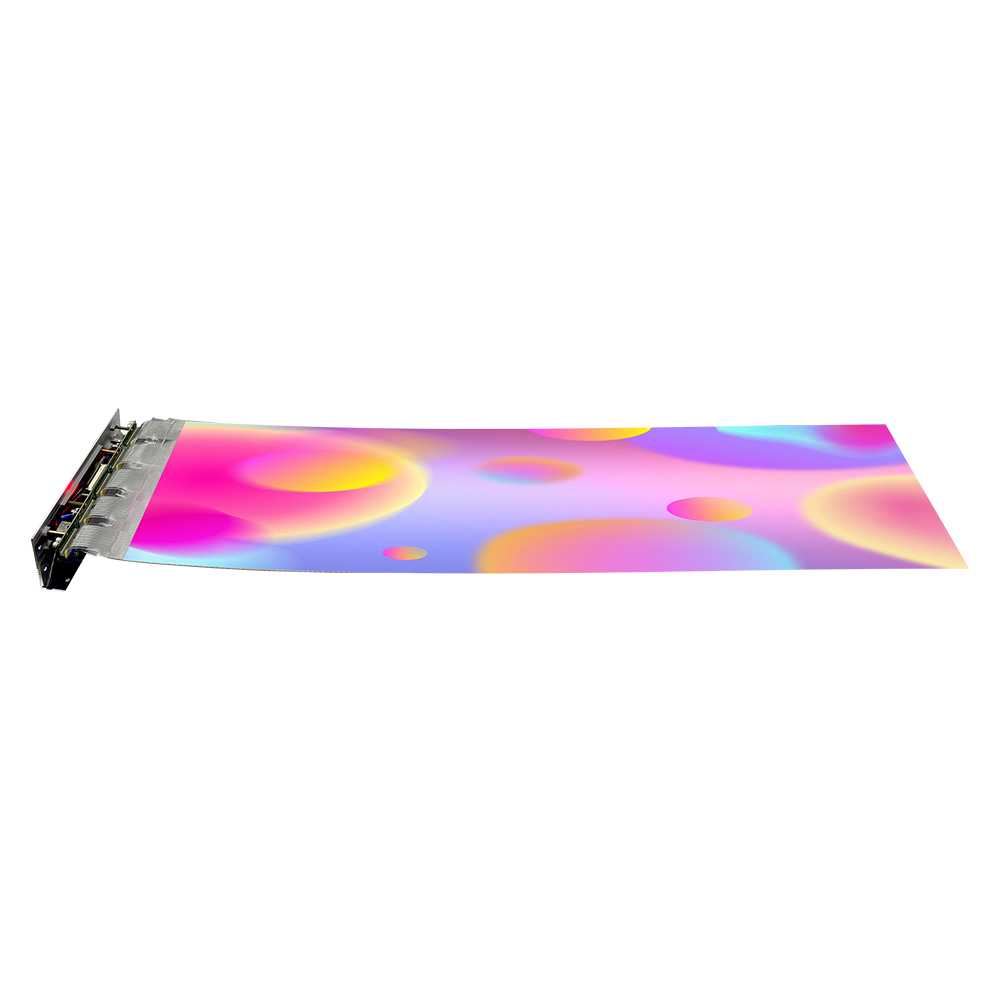

TD24D

Flexible dimensionsSuper slim & light weightEasy fixing & maintenanceState of the art technology

  • Product Detail
  • Product Parameter

Flexible dimensions
Super slim & light weight
Easy fixing & maintenance
State of the art technology

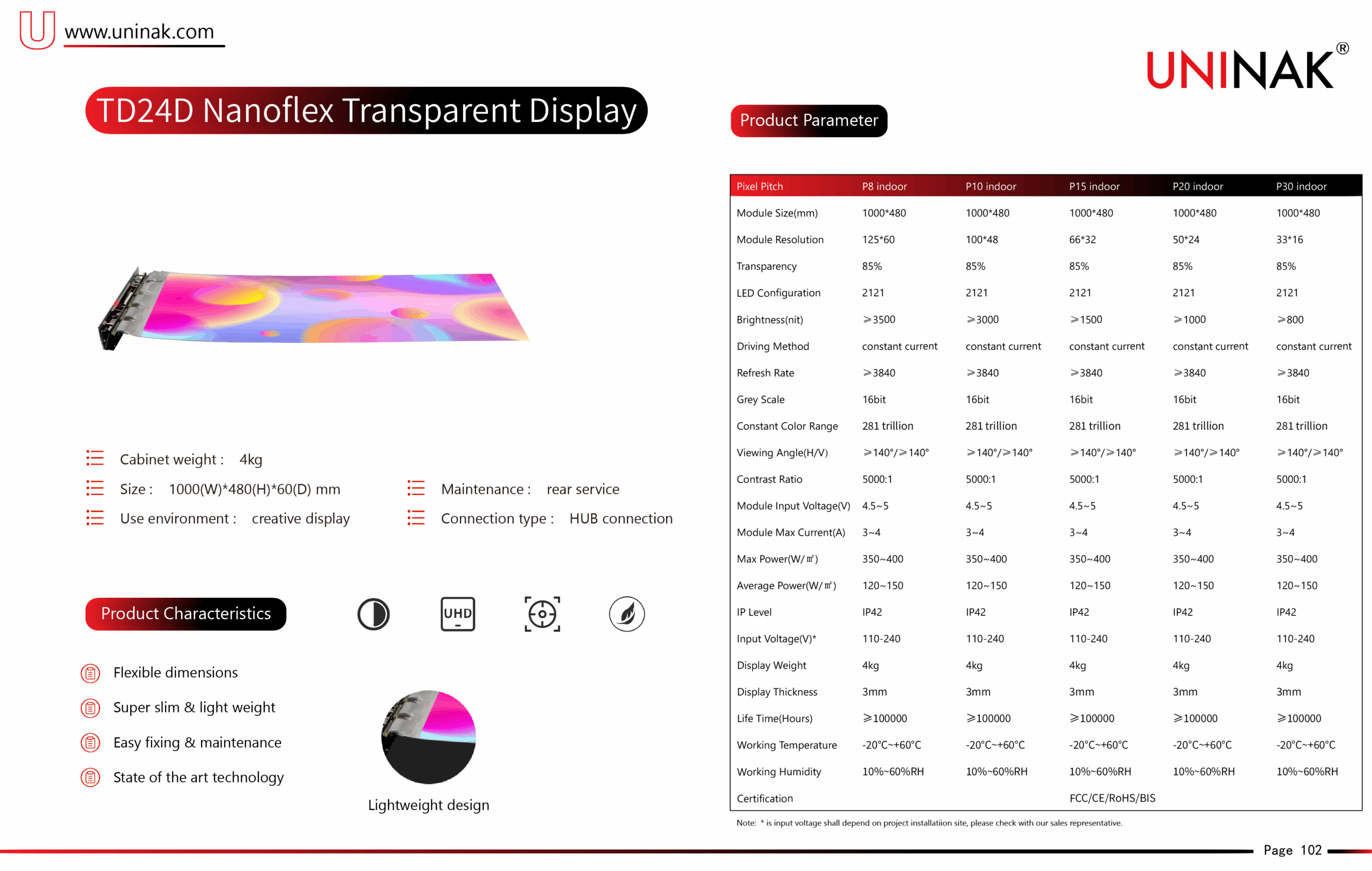

Pixel Pitch P8 indoor P10 indoor P15 indoor P20 indoor P30 indoor
Module Size(mm) 1000*480 1000*480 1000*480 1000*480 1000*480
Module Resolution 125*60 100*48 66*32 50*24 33*16
Transparency 85% 85% 85% 85% 85%
LED Configuration 2121 2121 2121 2121 2121
Brightness(nit) ≥3500 ≥3000 ≥1500 ≥1000 ≥800
Driving Method constant current constant current constant current constant current constant current
Refresh Rate ≥3840 ≥3840 ≥3840 ≥3840 ≥3840
Grey Scale 16bit 16bit 16bit 16bit 16bit
Constant Color Range 281 trillion 281 trillion 281 trillion 281 trillion 281 trillion
Viewing Angle(H/V) ≥140°/≥140° ≥140°/≥140° ≥140°/≥140° ≥140°/≥140° ≥140°/≥140°
Contrast Ratio 5000:01:00 5000:01:00 5000:01:00 5000:01:00 5000:01:00
Module Input Voltage(V) 5V 5V 5V 5V 5V
Module Max Current 4.5A 4.5A 4.5A 4.5A 4.5A
Max Power(W/㎡) 650 650 650 650 650
Average Power(W/㎡) 216 216 216 216 216
IP Level IP42 IP42 IP42 IP42 IP42
Input Voltage(V) 110-220 110-220 110-220 110-220 110-220
Display Weight 4kg 4kg 4kg 4kg 4kg
Display Thickness 3mm 3mm 3mm 3mm 3mm
Life Time(Hours) ≥100000 ≥100000 ≥100000 ≥100000 ≥100000
Working Temperature -20°C~+60°C -20°C~+60°C -20°C~+60°C -20°C~+60°C -20°C~+60°C
Working Humidity 10%~60%RH 10%~60%RH 10%~60%RH 10%~60%RH 10%~60%RH
Certification FCC/CE/RoHS/BIS
