XR23A/Event Display/

500×500mm XR LED Video Display for Events-XR23A

Cabinet Size:500*500mm

Cabinet Weight:7.5kg

Brightness:≥1200cd/m²

Refesh Rate:1920/3840

Gray Scale:16 bit

Viewing Angle:160/130

Ingress Protection:IP42

Power Consumption:500/120

Input Voltage(AC):100-240

Working Temperature:-20-60°C

Humidity:10%-95%RH

  • Product Detail
  • Parameter
  • FAQs
  • Packing & Delivery

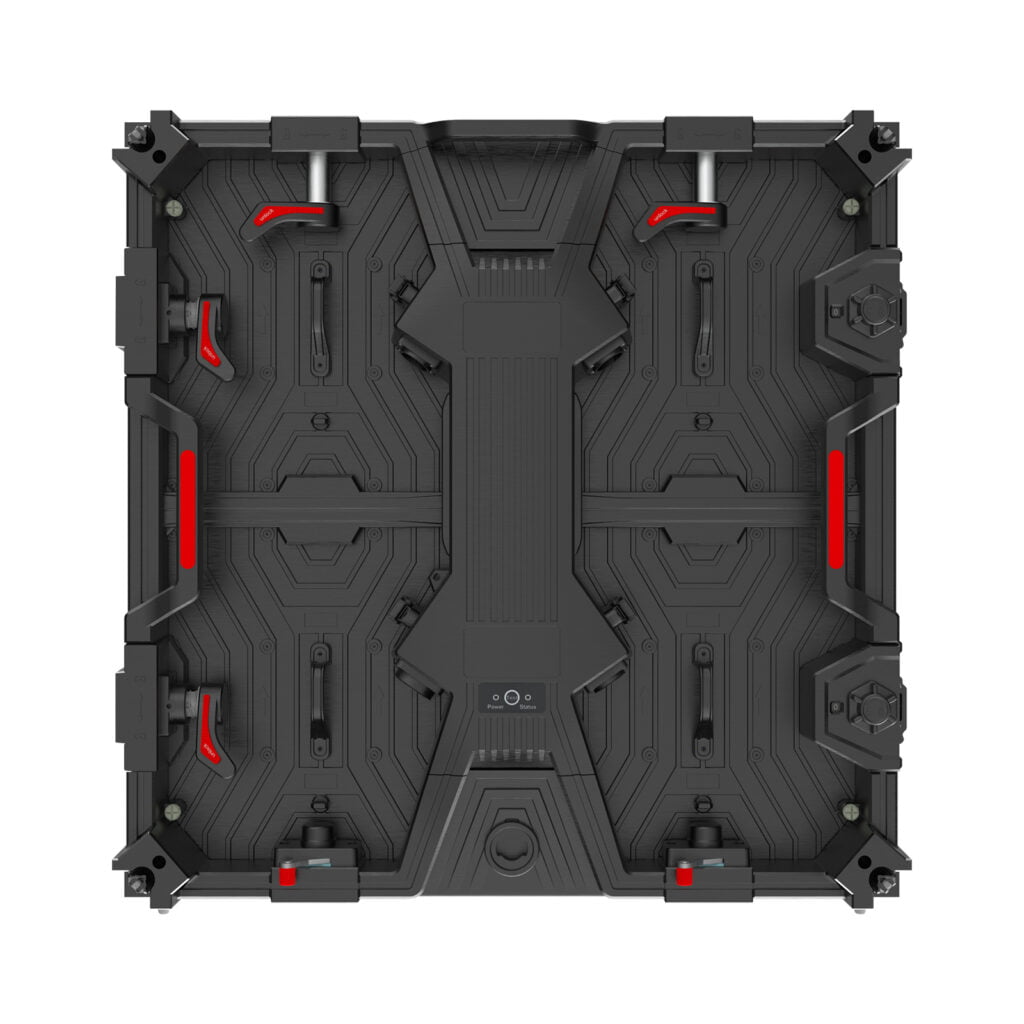

Corner protection
Front and rear access
Lower lamp support design
Improved design for curved lock
Stainless steel fast lock for quick installation
Location notch and pins on cabinet upper side
With flash light to feedback box internal working status
Support 45 degree cutting angle and 90 degree splicing

XR23A P1.953 P2.315 P2.604
Unit Dimension(W*H) (mm) (Depth:60mm) 500*500 500*500 500*500
Unit Resolution  (W*H) 256*256 216*216 192*192
Lamp type 1212 1515 1515
Brightness(CD/m2) ≥1200 ≥1200 ≥1200
Refresh rate (Hz) ≥7680 ≥7680 ≥7680
Scan Information 1/8 1/9 1/8
Gray Scale (bit) 15 16 16
Viewing Angle (Horiz/vert.)(degree) 170/140 170/140 170/140
Ingress Protection (front/rear) Indoor only Indoor only Indoor only
Power consumption(max/Avg)(watt/m2) 500/120 500/120 500/120
Weight (Kg/cabinet) 7.5 7.5 7.5
Input voltage (AC) (v) 100-240 100-240 100-240

Q: What does your company do? A: Our company make industrial professional led display products. We are in the field for more than 5 years and are professional for the led research&solutions. We focus on Led Rental – Stage Displays and Fixed Installation solutions where you can install your display on many different kind of places. Q: Where can we buy your products? A: Please contact us by Inquiry@uninak.com. We sell the product world wide, the product will be shipped from China. Let us know from what country you are from and we will give you also a free consult for your led display solution. Q: What kind of led display will suit the best for my solution? A:We are a professional manufacturer of Rental led screens and Fixed installation displays. If you have a certain project please contact us. What we will need from you to give you the perfect solution: 1. How will you use the led display? 2. Will you move the display or will it always be on a fixed location? 3. Is the led display used for indoor or outdoor? 4. Will the sun shines on that location? So do you need more brightness on the led screen? 5. What is the distance from the public and the led screen? 6. Is there space behind the led display for a person to do maintenance? 7. If not you probably will need a front service screen solution. 8. Any specific resolution you want to the screens?
